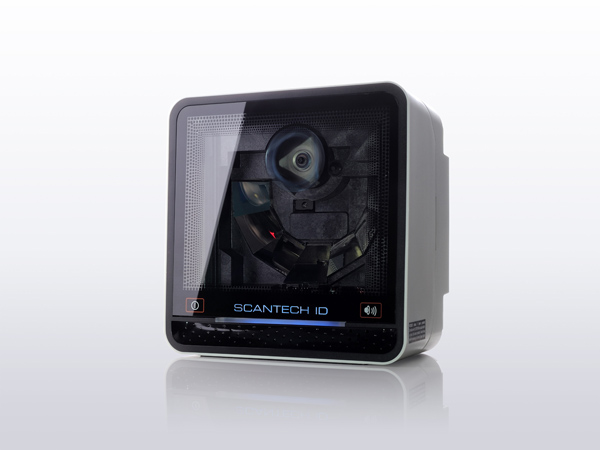

Scantech-Nova
|
| Product Name：Scantech-Nova |
 |
| Product No：154920-356 |
| Model：Scantech ID-Nova |
| Was Price：0Dollar/Carton Now Price：0Dollar/Carton |
| Last update：2013.06.24 |
| Manufacturer：UTG Taiwan |
| Clicks： |
|
 产品详细介绍 |
| Specifications |
| Performance |
|
| Light Source |
650±10nm VLD |
| Depth of Field |
Up to 250 mm@13 mill/0.33mm, PCS 90% |
| Scan Pattern |
7 directions scan field, 24 lines |
| Scan Rate |
2,400 scans per second |
| Resolution |
5mil / 0.127mm |
| Print contrast ratio |
30% |
| Indicator |
Beeper and LED (Stand by Blue, Good read Orange) |
| Interface |
RS-232, USB(USB HID or Virtual COM port), Keyboard Wedge, Powered USB |
| Physical |
|
| Color Available |
Black or Beige |
| Dimensions (WxHxL) |
152.02 x 152.07 x 90.22 mm,152.02 x 152.07 x 95.15 mm with back mount |
| Weight |
690g |
| Electronic |
|
| Input Voltage |
DC +12V @1.5A |
| Power Consumption |
2.28W |
| Operating Current |
190mA |
| Standby current |
160mA |
| Environmental |
|
| Ambient light |
Up to 4,800 Lux |
| Operating temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage temperature |
-10°C ~ 60°C (14°F ~ 140°F) |
| Symbologies |
Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited codes. | |
| |
|
|
