 Current Location:Home - Products - Industrial Panel PC

HPC IPC

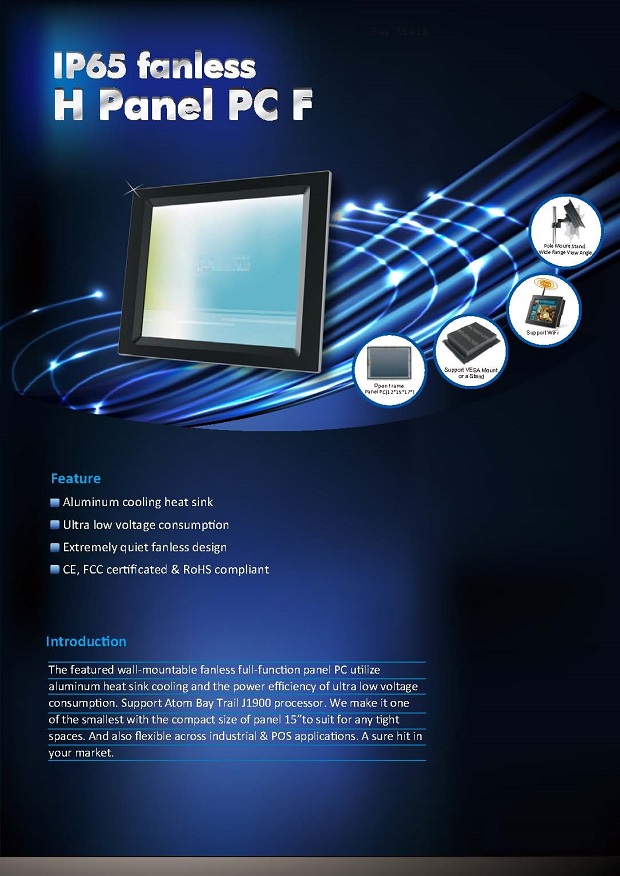

Product Name:HPC IPC

Product No:92522-512
Model:HPC
Was Price:0Dollar/Carton Now Price:0Dollar/Carton
Last update:2013.06.24
Manufacturer:UTG Taiwan
Clicks:
   产品详细介绍

Specification


Model Name: HPC Series
Main Board
Motherboard: BI-950ID
Mini-ITX form factor
size:170x170 mm
CPU: Onboard IntelIntel® J1900 Quad Core processor (2.0)GHz/2M cache)
Memory: 2x240 Pin SO-DIMM Socket up to DDR3 800 4GB SDRAM
Chipset: Intel ICH8M
Graphics: Integrated Intel Gen 3.5 + GFX Render Core 400MHz
OS: Windows XP Professional for embedded, Windows 7
Windows Embedded Standard, POS Ready
Network: Realtek RTL8111E Gigabit LAN
Audio: Realtek ALC662 Audio
Power Supply: AC Power Adapter, DC12V/84W
LED: Power, HDD
Display
TFT LCD Size: 12.1", 15", 17"
Resolution: 12.1" : 800 x600; 15" : 1024 x 768; 17" : 1280 x 1024
Brightness: 12.1" : 400 cd/m²; 15" : 250 cd/m²; 17" : 350 cd/m²
Touch Screen: HIGGSTEC/ Elo 5-Wire Analog resistive( optional)
Storage Devices
HDD: 1 x 2.5" SATA II
CF: Support Compact Flash Type I/II
I/O Ports
Serial Ports: 6xRS232
Support 5V/12V select, COM1-3&COM5 by D-Sub 9pin, COM4 by RJ50
COM6 reserved for Touch screen
Support Pin9 +5V/12V selection by Jumper
USB: 8 x USB 2.0 (2xUSB ports reserved for WiFi&MSR
LAN: 1xRJ45 interface (Gigabit LAN 10/100/1000)
PS/2: 1 x PS/2 ports for Keyboard
VGA: 1 x DB-15 For VGA interface
Audio: 1xLine-out
Environment
Operating Temperature: 0 ~ 40°C
Storage Temperature: -20 ~ 60°C
Humidity: 10% ~ 90%
Compliance: CE, FCC, RoHS
Others
Power: DC 12V power input
Weight: 12.1" : 4.5Kg; 15" : 5.5KG; 17" : 7.2KG
Dimension: 12.1" : 330(W) x 260(H) x 73(D)mm; 15" : 392(w) x 302(H) x 76(D)mm; 17" : 425(w) x 344(H) x 82 (D)mm
VESA: Support
Option
W-LAN: 802.11 b/g/n module
CF: Standard A: Compact Flash type I/II up to 16GB (Optional)
Standard B: N/A
