VaripoS Touch
Product Name:VaripoS Touch

Product No:223647-657
Model:Varipos
Was Price:0Dollar/Carton Now Price:0Dollar/Carton
Last update:2013.06.21
Manufacturer:UTG Taiwan
Clicks:
   产品详细介绍

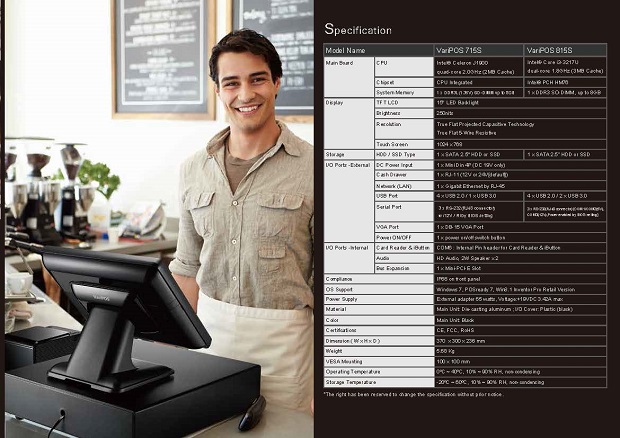

Specifications

Model Name

VariPOS 715S



Main Board

CPU

Intel® Celeron J1900 quad-core 2.0GHz with L2 Cache 2MB (Fanless)





Chipset

CPU Integrated



System Memory

1 x DDR3 SO-DIMM up to 8GB

Display

TFT LCDtd>

15" TFT LCD(LED backlight)

Brightness

250nits

Resolution

1024 x 768

Touch Screen

True Flat Projected Capacitive Technology / True Flat 5-Wire Resistive

Storage

HDD / SSD Type

1 x SATA (2.5'') HDD or SSD

I/O Ports -External

DC Input

1 x Mini Din 4P (DC 19V only)

Cash Drawer

1 x RJ-11 (12V or 24V(default))

Network (LAN)

1 x Gigabit Ethernet by RJ-45

USB Port

4 x USB 2.0 / 1 x USB 3.0**



Serial Port

3 x RS-232(RJ48 connector) w /12V / RI by BIOS setting

POWER ON/OFF

1 x power on/off switch button

VGA Port

1 x DB-15 VGA Port

I/O Ports -Internal

Card Reader & iButton

COM6 : Internal Pin header for Card Reader & iButton

Audio

HD Audio, 2W Speaker x 2

Bus Expansion

1 x Mini-PCI-E Slot

Compliance

IP 66 on front panel (Front Panel)

System Management

Desktop Management Interface (DMI)

Preboot Execution Environment (PXE)

Wake on LAN (WoL)

Advanced Configuration and Power Interface (ACPI)

OS Support

Windows 7, POSready 7

Power Supply

External adapter
DC Model: 65 Watts
Voltage: +19VDC 3.42A max.

Material

Main Unit: Die-casting aluminum ;
I/O Cover:Plastic

Color

Main Unit: Black

Certifications

CE, FCC, RoHS

Dimension( Wx H x D )

370 x 300 x 236 mm

Weight

5.68 Kg

Operating Temperature

0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing

Storage Temperature

-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing

Optional Accessories

VFD

2 x 20 attached VFD

MSR

Front, 3 tracks RS-232 Type or PS/2 Type

MSR & iButton

MSR-Front & iButton, RS-232 Type or PS/2 Type

Fingerprint Reader

USB

RFID

USB, 13.56MHZ Read / Write

7" 2nd display

Resolution 800 x 600

10.4" 2nd display

Resolution 800 x 600

** Please Note: Per News Release from Intel:  Baytrail doesn't support USB 3.0 under Win7/POSReady.

ISG BIOS is needed to support USB Legacy Boot in xHCI. Installation cannot be done on Win7 by USB drive when it is xHCI mode. EHCI mode is necessary to install Win7 by USB drive.
