Basic Specification
|
LCD |
11.6” Full HD LCD |
1920x1080 |
|
System |
CPU |
Novatek 68862 |
|
SPI Flash |
2M bits. |
|
I/O |
HDMI |
*1 |
|
USB Type A |
*1,Touch Panel Input |
|
Speaker |
*1 |
2wx2 |
|
Power |
AC/DC adapter(Option) |
100-240Vac In, 12Vdc Out/2A,24W adapter |
|
Physical Button |
Power Slide Switch |
1 |
|
Function Key |
Menu, Up/Down, Auto/Return, Input mode Select |
|
LED Indicator |
Green/Red 雙色燈 |
1 |
|
Reliability |
Certification |
CE/FCC |
|
Environment |
Temperature |
Operation: 0℃ ~ 40℃ ( 32F ~104F)
Storage: -10°C ~ 55°C (14°F ~ 131°F) |
|
Humidity |
Storage:10% ~ 70% (Non-Condensing) |
|
RoHS |
Detail Specification
Hardware
CPU
- Novatek 68862
System Memory
- SPI Flash 2Mbit
LCD
- 11.6” 1920x1080 digital TFT LCD、(IPS)
Touch Panel Type
- 10 point capacitive multi-touch type
Amplifier, Speaker
- Speaker unit: 2W+2W
-- Save the set-up volume and keep the value at the time of power off and on.
LED
- Power supply ON: Green LED Light.
- Power supply OFF: LED light off

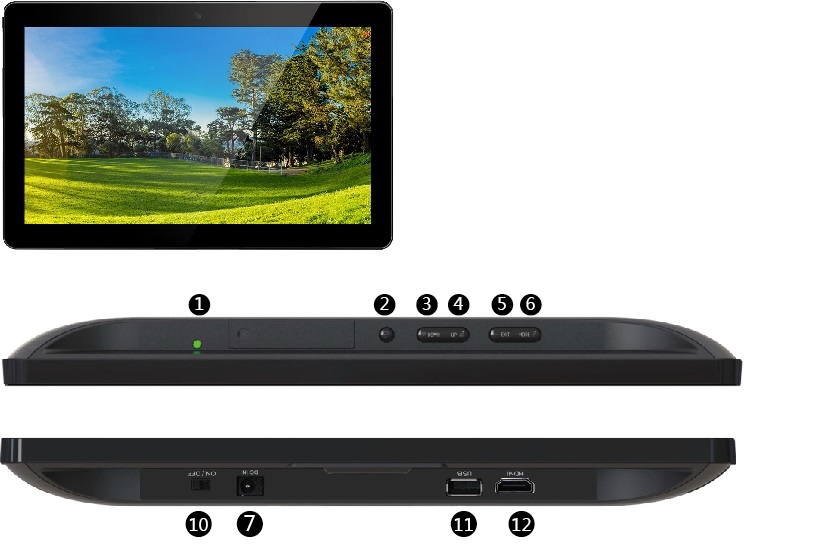

External Interface
- Key button (Menu, UP, Down, Auto/Return , Manual)
- USB interface: USB host type A port for Touch Panel Input.
- Power Button
- AC adapter port 3 Meter.
- VESA mount (75x75 mm)
- USB Cable 2.5 Meter |
